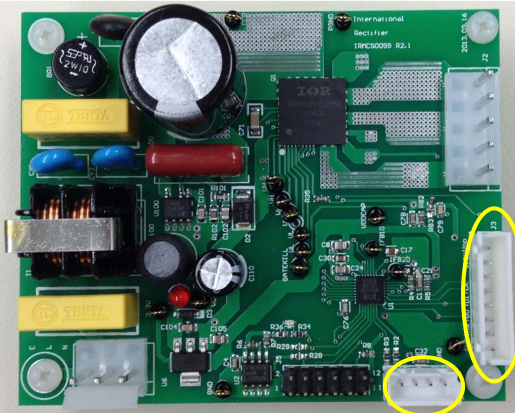

IRMCS0099 Features:
IRMCK099 in leg shunt configuration, can be modified to single shunt
IRSM836-035MA uIPM (3A/500V FREDFET) no heatsink, up to 100W output power JTAG port for programm

Benefits:
Low cost
High performance sensorless FOC control for PM motor
Low components

Target application:
Perfect for simple applications but require
high performance control, such as:
Fan
Pump
Refrigeration

Main Features:
32bit MCE computation engine
Hardware accelerator (multiply, divide, Cordic vector rotate, ATAN) for fast FOC algorithm ution
16K byte OTP memory
Internal 100MHz system clock
8-channel 12-bit ADC (0-1.2V)
Internal temperature sensor
Configurable digital IO
Internal overcurrenthardware comparator
Low power standby mode, wake up by analog input
Watchdog
UART, I2C, analog (PWM) output and capture input
3.3V single supply, all digital IOs are 5V tolerant
5mm x 5mm 32pin QFN
